HEATING PLATES FOR FARROWING PENS
Ensure comfort for the piglets and better survival ability

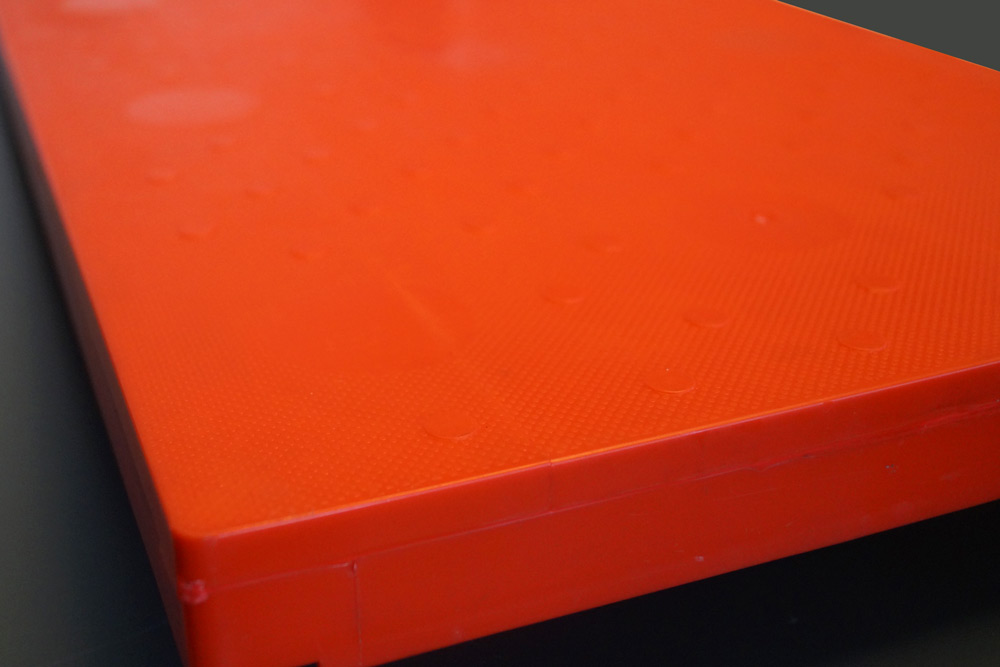

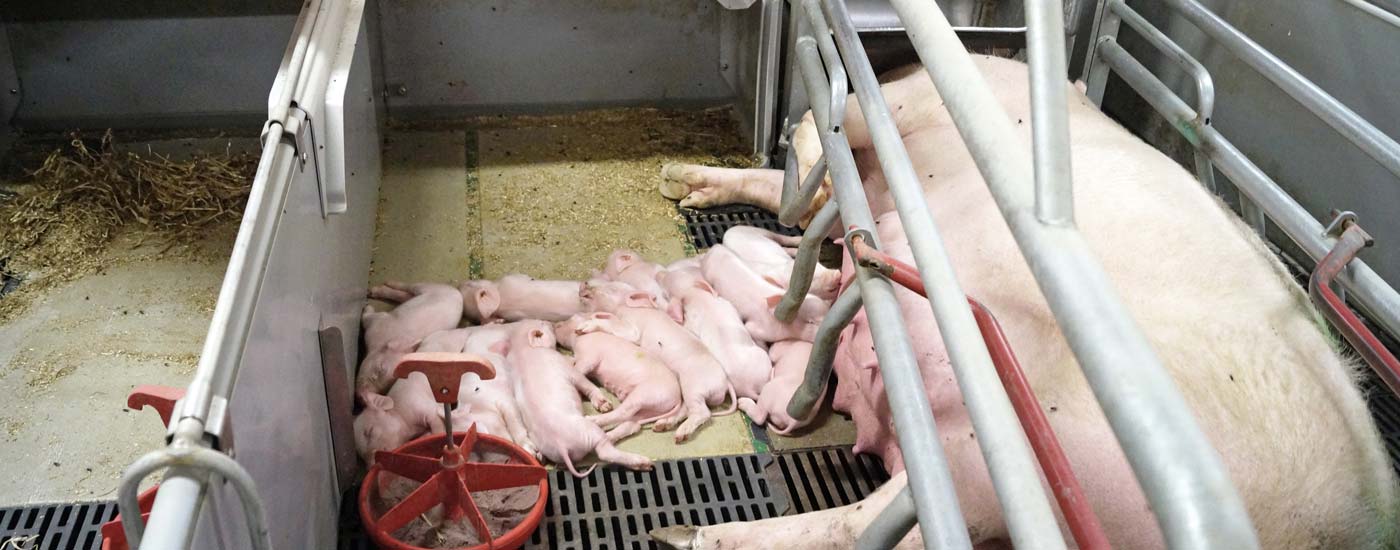

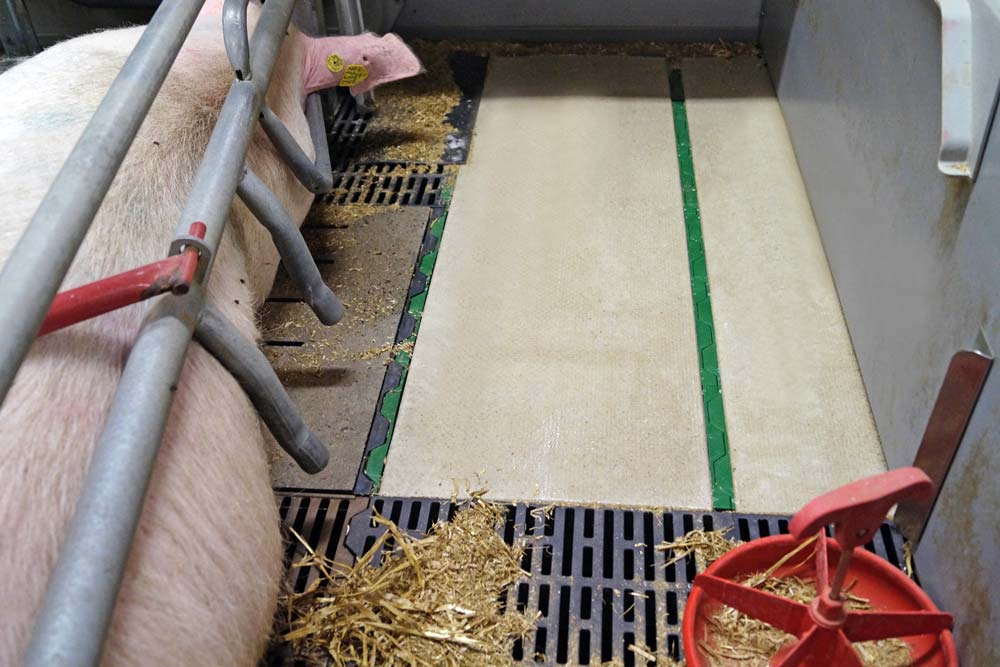

The heating plate is used in farrowing pens to ensure optimal piglet comfort and better survival ability during the first few days.
The heating plate requires only minimum maintenance but, at the same time, ensures optimum growth conditions for even the smallest piglets. The bottom is provided with insulated foil material so the heat rises upwards.
With Master Trading heating plate, you get:
- Fast and equal heating
- Better heat utilization and lower energy consumption
- Good piglets welfare
- Optimal heat distribution
- Possibility for electrical or hot water heating plates
- Minimum maintenance
- Optimum growing conditions even for the smallest pigs
- The bottom is provided with insulated foil material -> heat rises upwards
- Stable and durable
- Easy and inexpensive installation

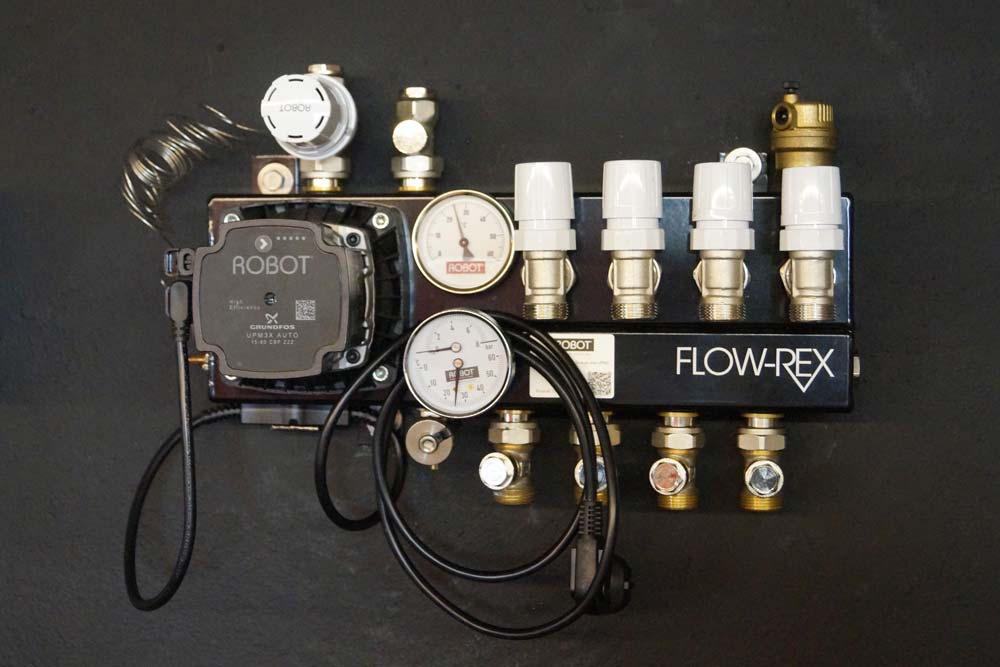

Connection of heating plate for water
With Master Trading heating plate for water, there are molded high-pressure pipes in polymer concrete with clamp fittings, this makes the installation easy and cheap. In this model it is possible to connect the heating plates in series up to five units, where the temperature is regulated by one thermostat.
| HEATING PLATE FOR HOT WATER | |
|---|---|
| 12630 | L: 120 x W: 40E - 230V, 130W |
| 12631 | L: 120 x W: 50E - 230V, 180W |
| 12633 | L: 120 x W: 80E - 230V, 270W |
| 17813 | L: 140 x W: 50E - 230V, 180W |
| 17814 | L: 120 x W: 60, 4S 4 sided |
| 17634 | L: 120 x W: 60, 3S, 3 sided |
| 17640 | L: 120 x W: 60, 2S 2 sided |
Connection of heating plate for EL
In the Master Trading heating plate for EL, there are molded electric heating treads in the polymer concrete, which makes the installation easy and cheap. In this model it is possible to connect many plates in series, however a control unit will only cut handle up to 1250 W, but whith a relay the control unit will handle 2500 W.
