FUNKIMAT Feeder for pigs from 6 to 120 kg
Most precise feed adjustment and minimal feed waste

FUNKIMAT is made of stainless materials, ensuring a long lifespan. FUNKIMAT is available in all models with 1-meter-high side panels, suitable for mounting in pen dividers. With the use of two foot plates, the feeder can also be placed freestanding in the pen.

Funkimat - Key benefits:

  • Minimal feed waste
  • Most precise feed adjustment
  • Low maintenance costs
  • Can be 100% optimized for both meal and pellet feed
  • Long durability
  • Good separation between water and feed
  • Large feeding area / surface
  • Wide adjustment options to minimize feed waste
560710M-3
560710M-3
560710M-4

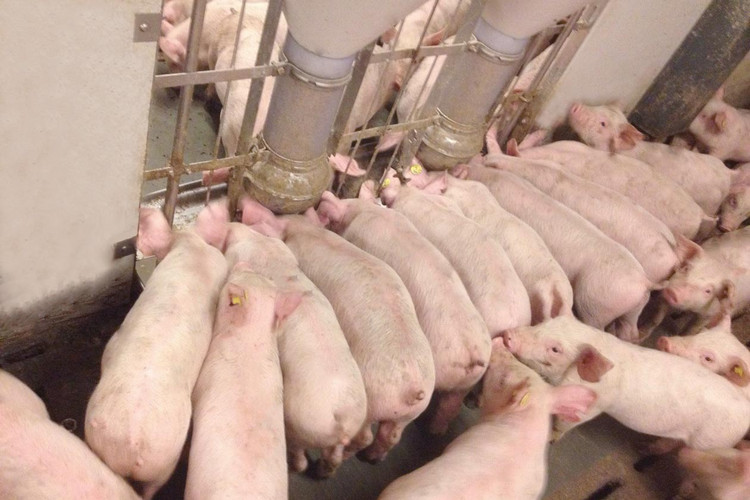

Many-pigs-eating
1 / 4

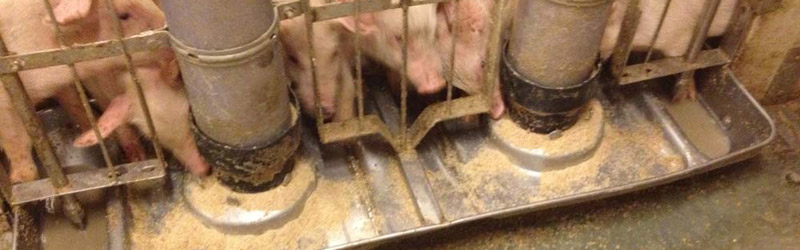

Funkimat Top

Technical information:

HopperNo. of pigs
per feeder		Dimensions, mm No. of pigs
per trough
FUNKIMAT (weaners - single)
100 l30-50H:100, L:693, B:42530-50 (5-35 kg)
FUNKIMAT (weaners - double)
200 l40-80H:100, L:1225, B:42550-80 (5-35 kg)
FUNKIMAT (finishers - single)
100 l30-40H:130, L:693, B:42530-40 (30-120 kg)
FUNKIMAT (finishers - double)
200 l50-70H:130, L:1225, B:42540-70 (30-120 kg)

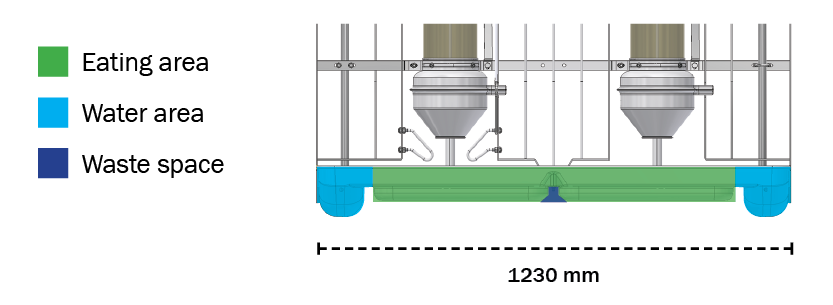

FUNKIMAT Trough is designed for better feed utilization

The trough is designed so that there is good feeding space at the wide feed plateau in the middle and easy access to water on both sides.

Funkimat Areas

FUNKIMAT is supplied with a flat frame made of 40x3 mm stainless steel.
Water supply: ½” stainless steel pipe with external thread and adjustable stainless steel tipping valve.

Download:

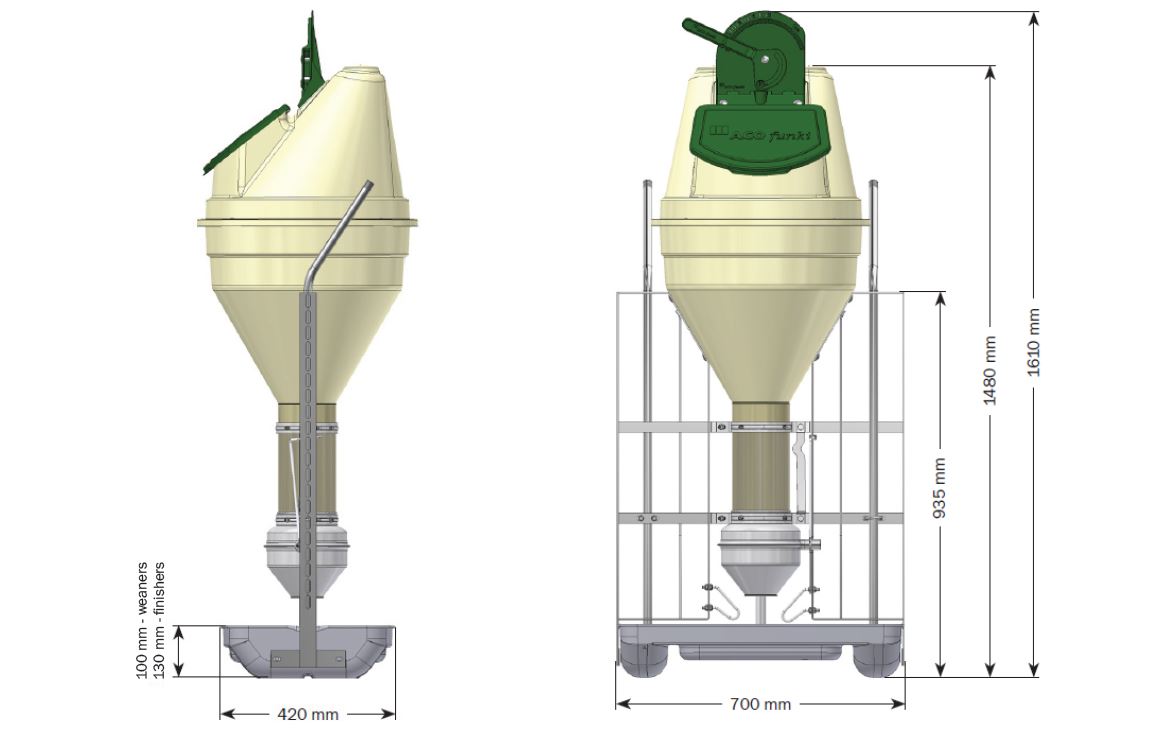

Funkimat-Single-dimensions-GB

FUNKIMAT SINGLE - WITH STAINLESS STEEL TROUGH

  • 560710 FUNKIMAT for weaners (flat-flat)*
  • 560711 FUNKIMAT for finishers (flat-flat)*

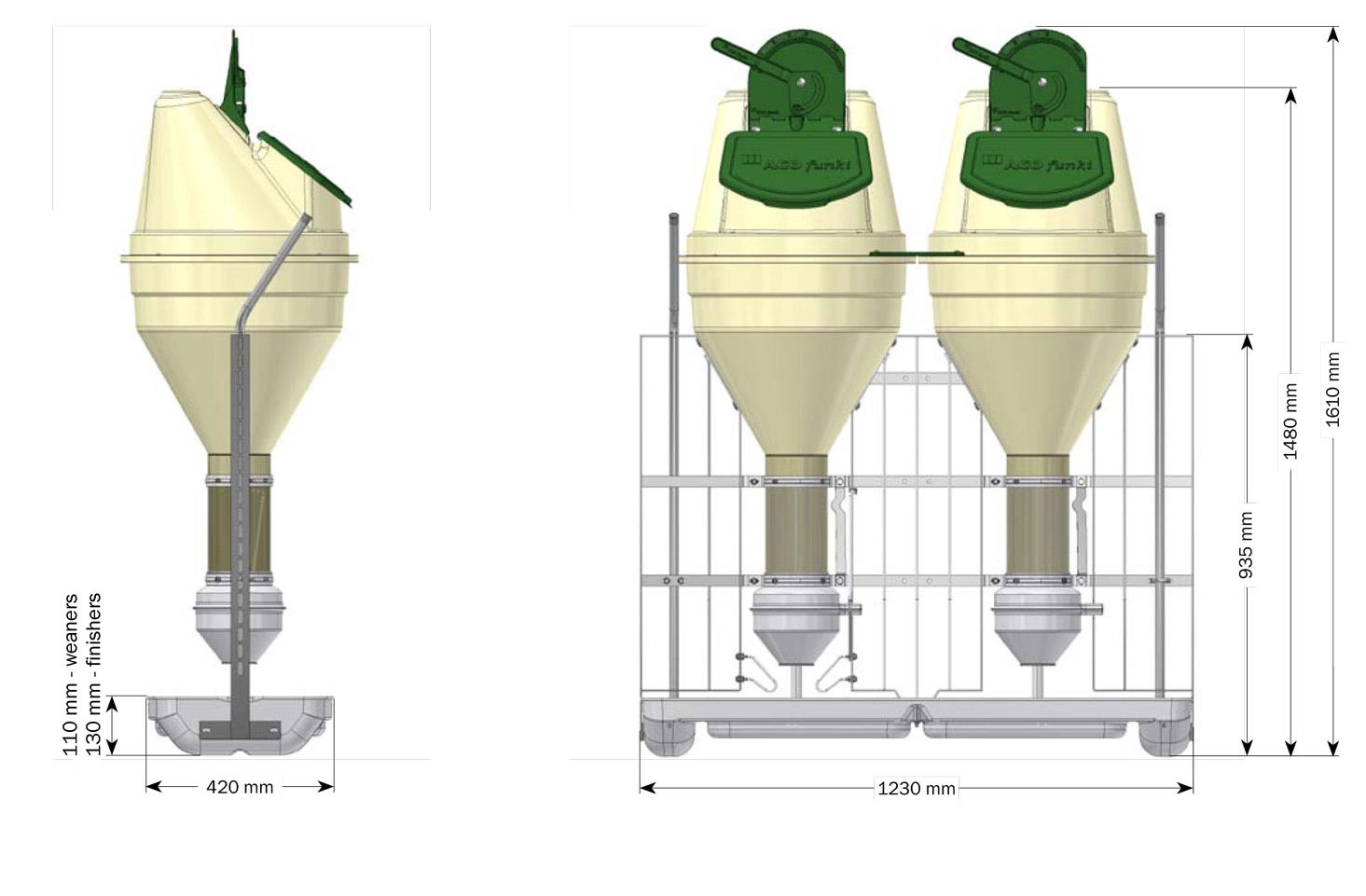

FunkiMat-double-dimensions-gb

FUNKIMAT DOUBLE

  • 0227-870 Double FUNKIMAT for weaners (flat-flat) - assembled
  • 0227-970 Double FUNKIMAT for finishers (flat-flat) - assembled
  • 0227-670 Double FUNKIMAT (flat-flat) - unassembled
  • 0227-714 Stainless steel trough for double FUNKIMAT, weaners, complete
  • 0227-715 Stainless steel trough, for double FUNKIMAT, finishers, complete

0227-870 consists of 0227-670 + 0227-714
0227-970 consists of 0227-670 + 0227-715

*Can be delivered assembled (item no.+M) or unassembled (item no.+U).
