FEED OUTLET

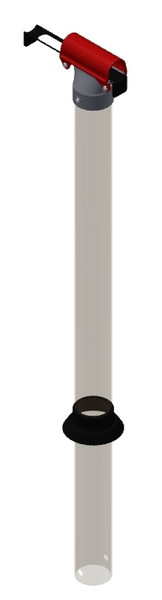

Feed outlet
Feed outlet has a number of unique functional advantages ensuring effectivity and good hygiene.
Large capacity
The lower part of the outlet is oval and shaped in a way which makes it possible to drill more holes or cut a slot in the feed tube. This ensures a quick and effective draining of feed.
Always dry feed
The design of the feed outlet counteracts penetration of water and moisture.
Reliable damper
The damper fits tightly to the feed pipe, which prevents feed from accumulating which otherwise affect the function of the damper. The sliding damper can easily be "remote controlled" by for example a broom stick, if it cannot be reached from the feeding passage.
Article nr. | Info | |
---|---|---|
Downpipe - Solid Piece | ||
![]() | 90550 90552 90554 | FEED DOWNPIPE 38 MM WITH FIXED T-PIECE FEED DOWNPIPE 50 MM WITH FIXED T-PIECE FEED DOWNPIPE 60 MM WITH FIXED T-PIECE |
![]() | 90571 90573 90574 | FEED DOWNPIPE 38 MM Y-MODEL WITH FIXED T-PIECE FEED DOWNPIPE 50 MM Y-MODEL WITH FIXED T-PIECE FEED DOWNPIPE 60 MM Y-MODEL WITH FIXED T-PIECE |
![]() | 90560 90562 90564 | FEED DOWNPIPE 38 MM WITH FIXED T-PIECE FOR TUBE FEEDER FEED DOWNPIPE 50 MM WITH FIXED T-PIECE FOR TUBE FEEDER FEED DOWNPIPE 60 MM WITH FIXED T-PIECE FOR TUBE FEEDER |
![]() | 90482 90484 90486 0228-488 | FIXED T-PIECE FOR 38 MM FIXED T-PIECE FOR 50 MM FIXED T-PIECE FOR 60 MM FIXED T-PIECE FOR 75 MM |
![]() | 90268 | MASTER COLLAR PLASTIC, FOR DOWNPIPE |
![]() | 90212 90211 90210 0228-510 | Y-BRANCH 63 MM 30° Y-BRANCH TUBE 63 MM 60° Y-BRANCH TUBE 75 MM 90° Y-PIECE 75 MM 60° |
Article nr. | Info | |
---|---|---|
Downpipe - T-piece | ||
![]() | 0227-591 0227-592 | FEED DOWNPIPE Ø63X1000 INCLUDING Ø38 T-PIECE FEED DOWNPIPE Ø63X1000 INCLUDING Ø60 T-PIECE |
![]() | 0227-593 0227-594 | FEED DOWNPIPE Ø63X3000 INCLUDING Ø38 T-PIECE FEED DOWNPIPE Ø63X3000 INCLUDING Ø60 T-PIECE |
![]() | 0228-595 0228-480 | TELESCOPE WITH DOWNPIPE TELESCOPE PIPE Ø80 |
![]() | 0228-588 90249 | DOWNPIPE Ø63X2 1000MM WITH HOLE PLASTIC DOWN TUBE 75 X 1000 MM FARROWING CRATE |
![]() | 0142-015 0232-010 | T-PIECE WITH SLIDE, Ø38 T-PIECE WITH SLIDE, Ø60 |
![]() | 0232-009 | SLIDE (BLACK) |
![]() | 0232-007 | SLIDE FOR T-PIECE |
